A CLOSER LOOK / PHNTM ONE

Engineering drawings.

See how PHNTM One fits together. Explore the enclosure, internal components and measured dimensions, with photographs of the actual device alongside the drawings.

Download all 9 sheets

REVISION D.1 · OCTOBER 9, 2026 · PDF / A3 SHEETS

THE DEVICE, IN THREE DIMENSIONS

Turn it. Open it. Explore it.

Looking for the drawings? ↓

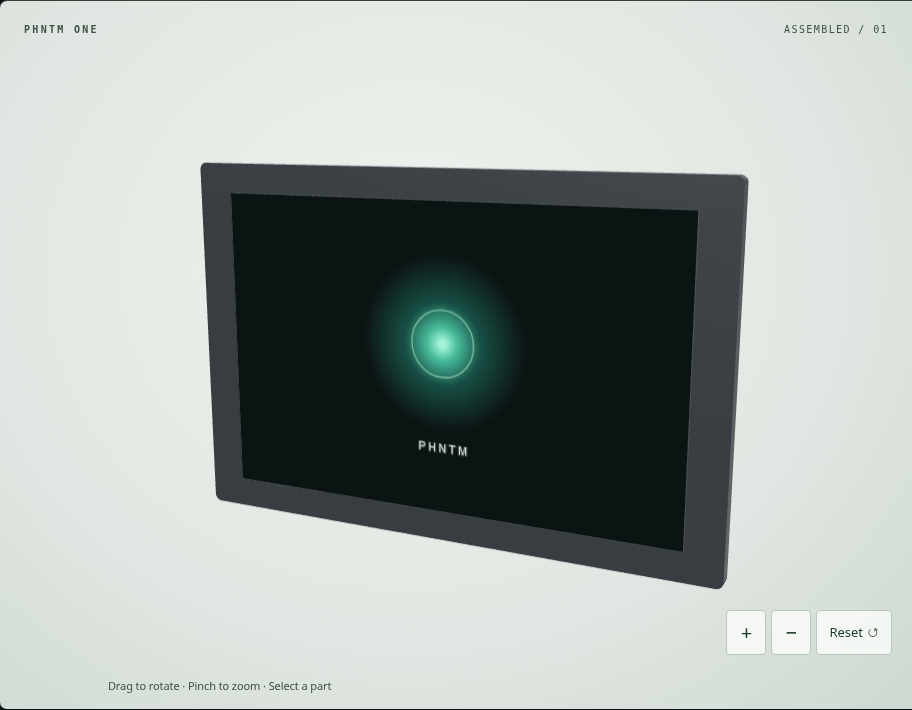

PHNTM One reference assembly. Interactive 3D controls load when available.

Interactive 3D requires JavaScript. The complete drawing set is below.

Interactive reference based on the approved drawings. Small features and internal positions are estimated; finishes and screen artwork are illustrative. Exploded spacing shows the parts, not a disassembly sequence. See the measured drawing set ↓

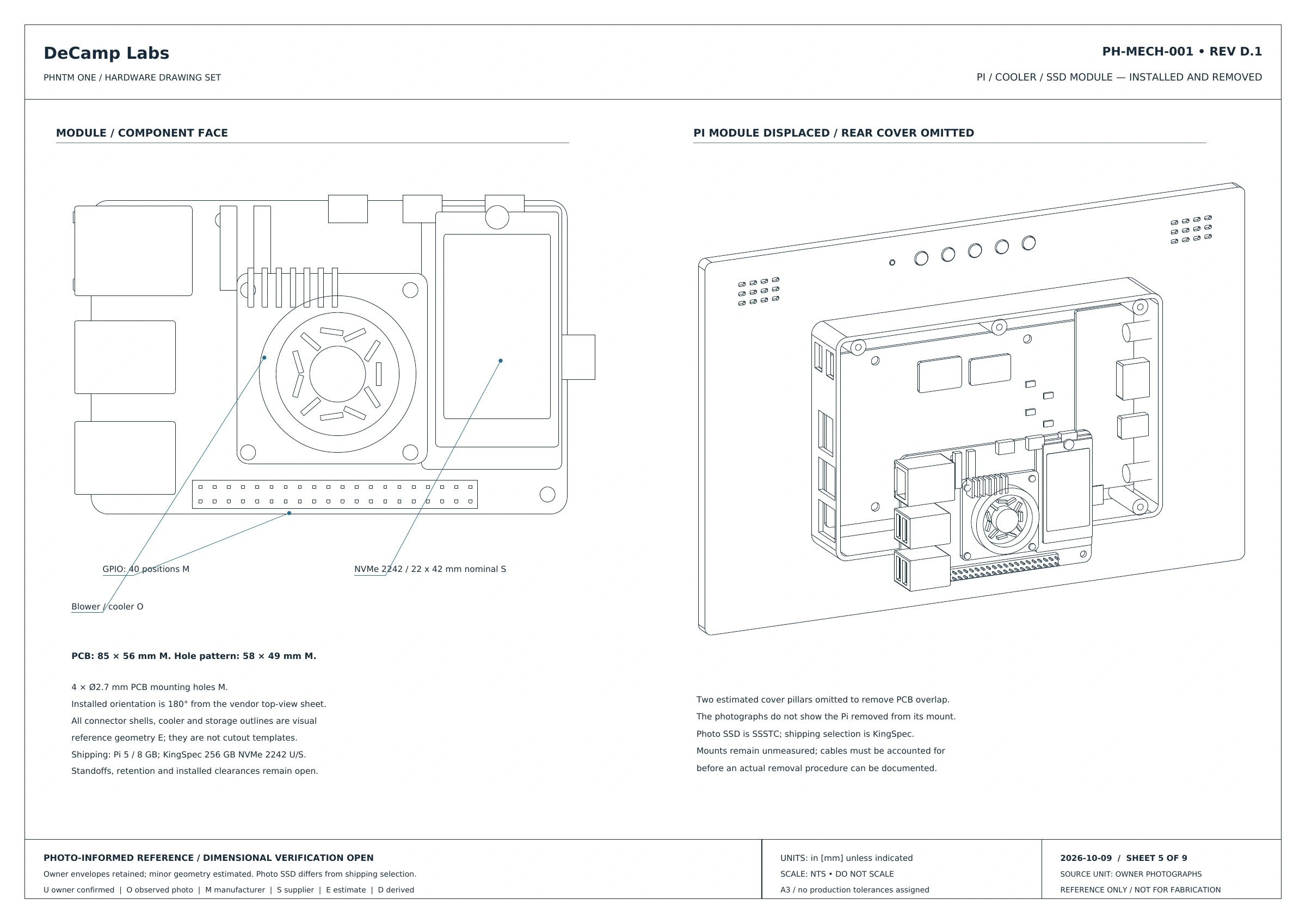

Inside the current shipping configuration.

Compute
Raspberry Pi 5 · 8 GB RAM
Storage, included
256 GB NVMe M.2 SSD
Cooling & storage adapter
Waveshare PCIe TO M.2 Board (E)

The selected shipping drive is a KingSpec M.2 2242 SSD. Reference photos show an earlier SSSTC drive; the drawing notes distinguish the two.

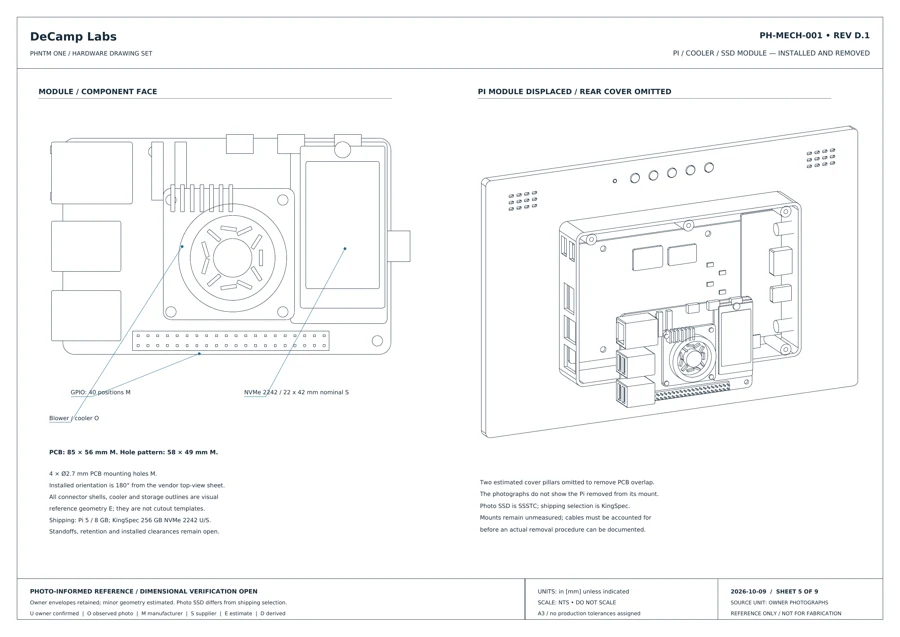

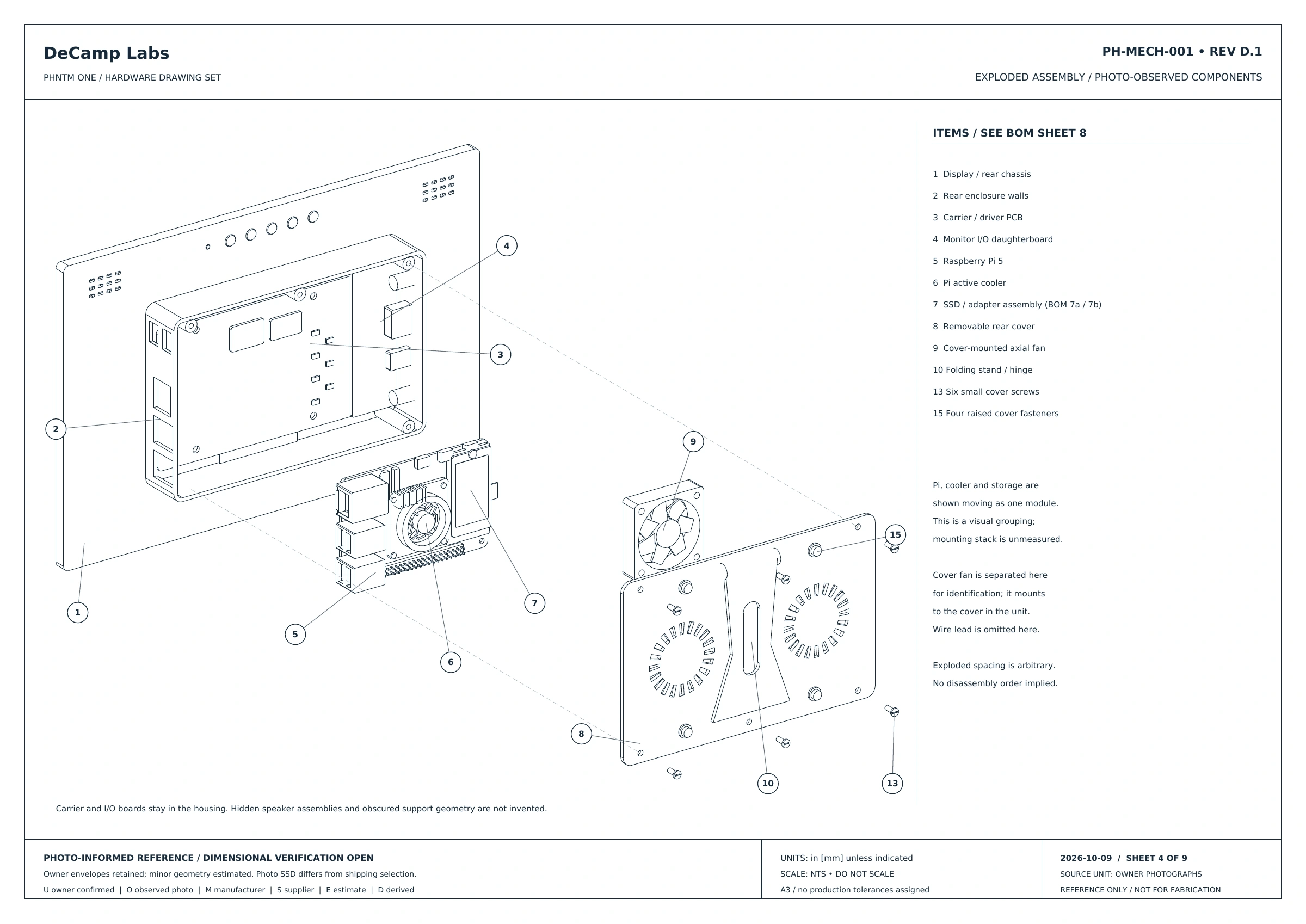

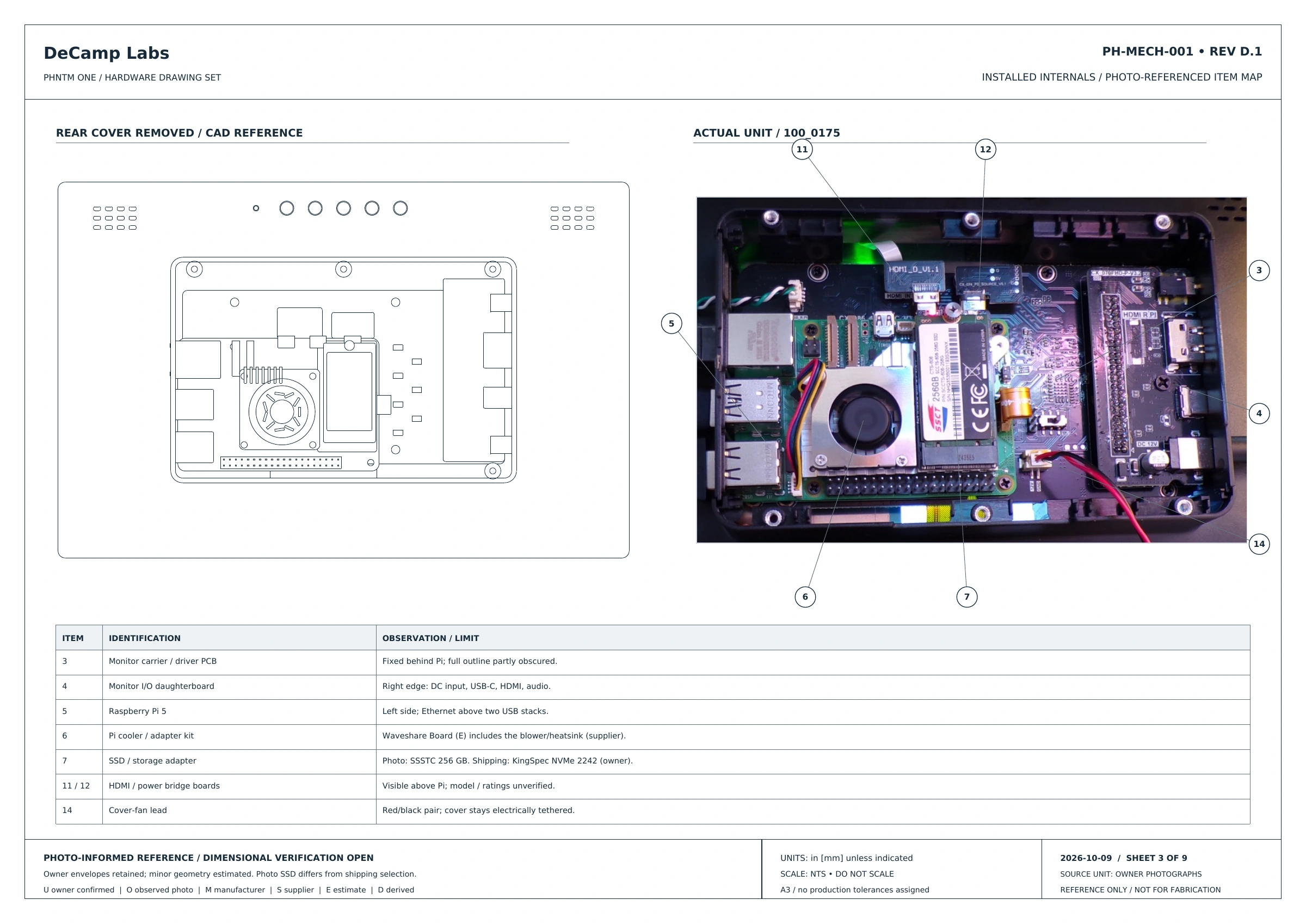

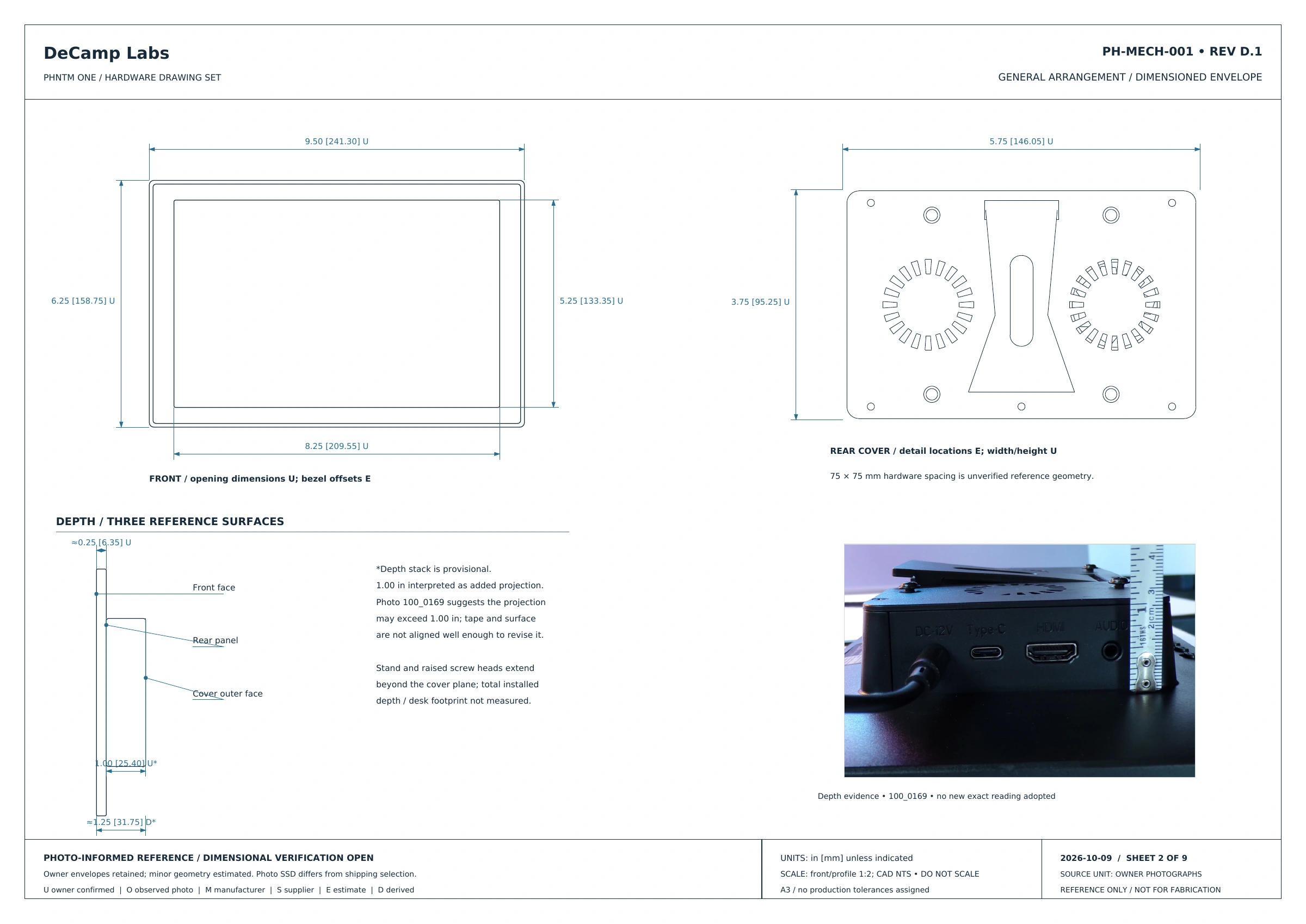

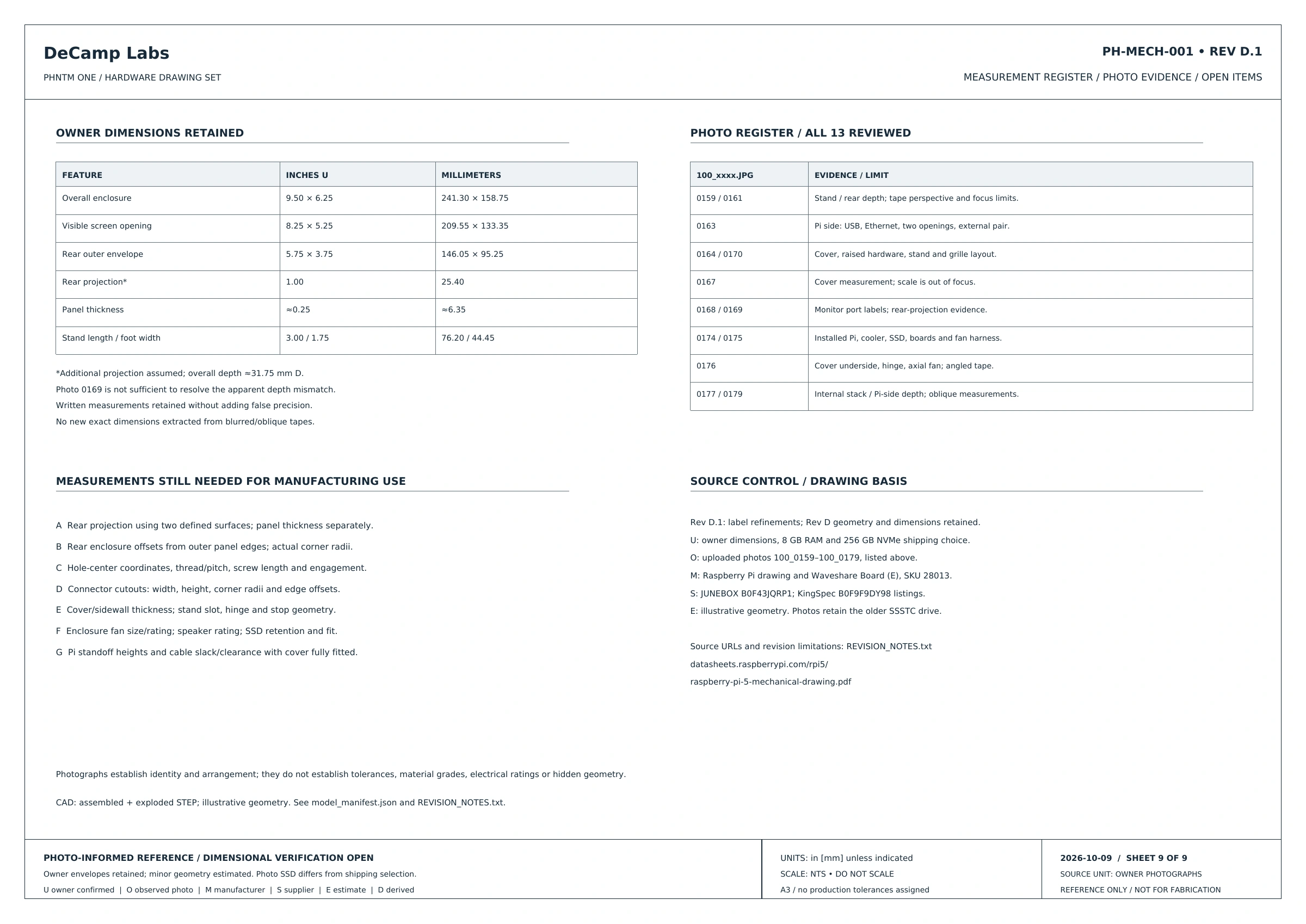

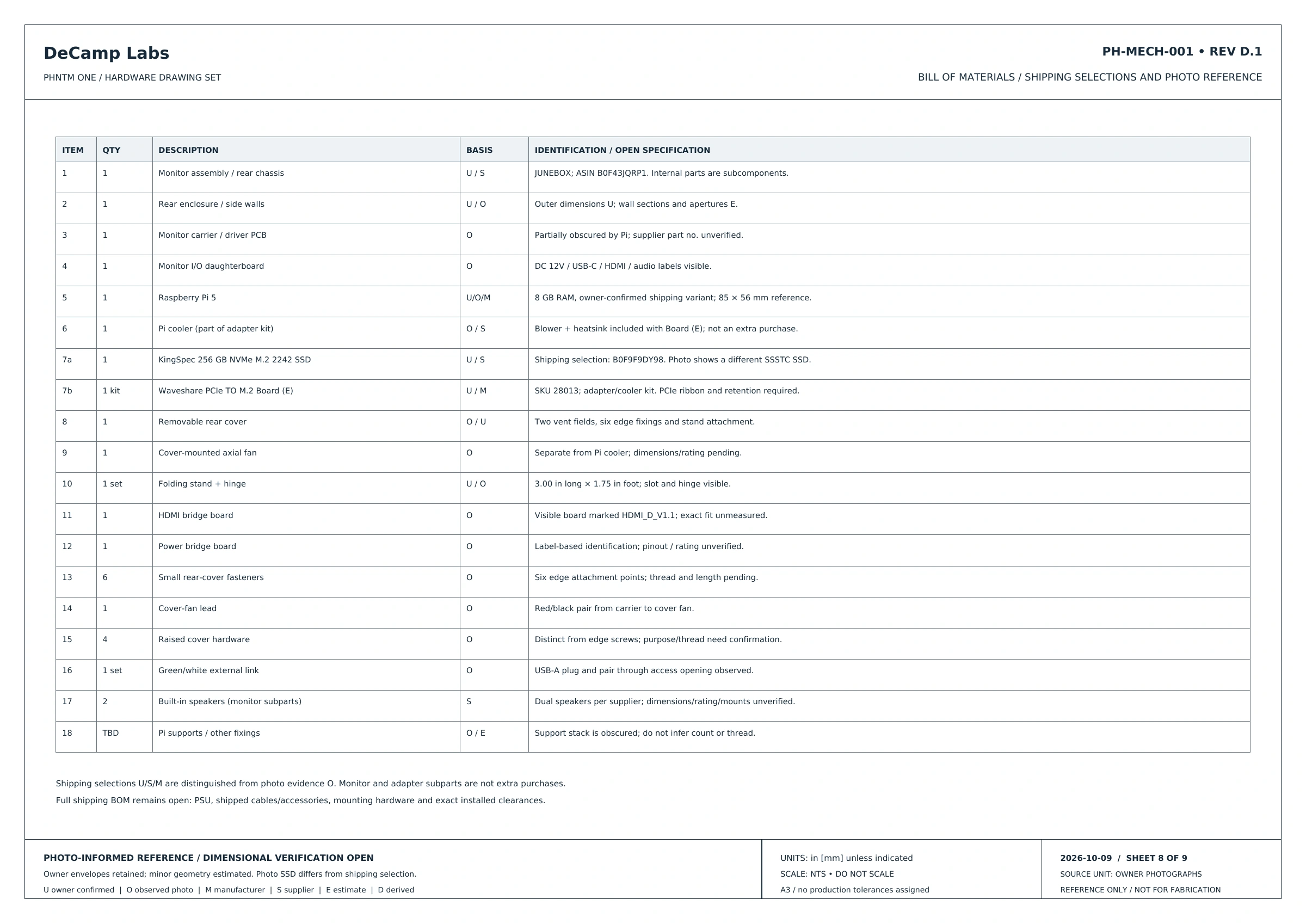

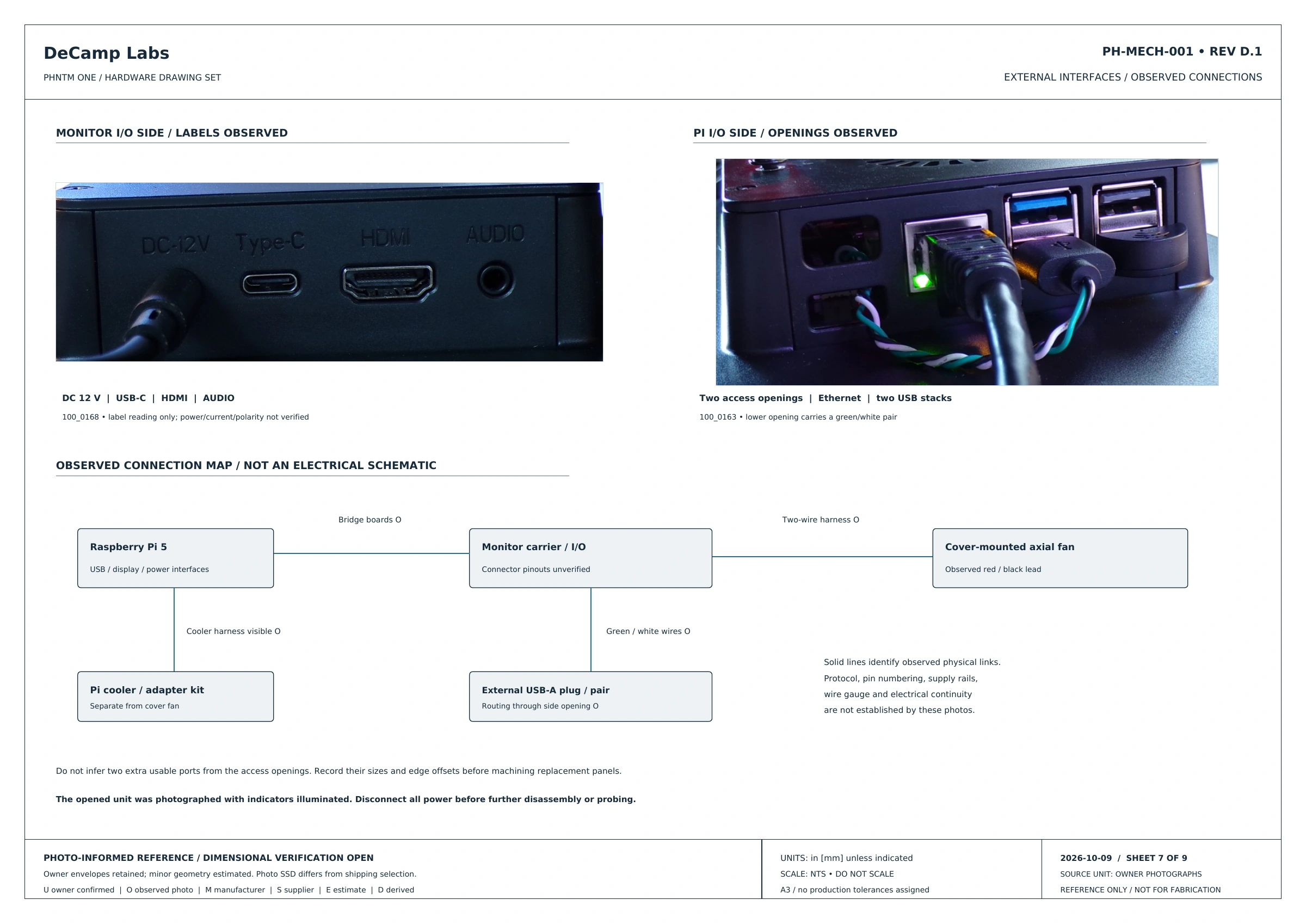

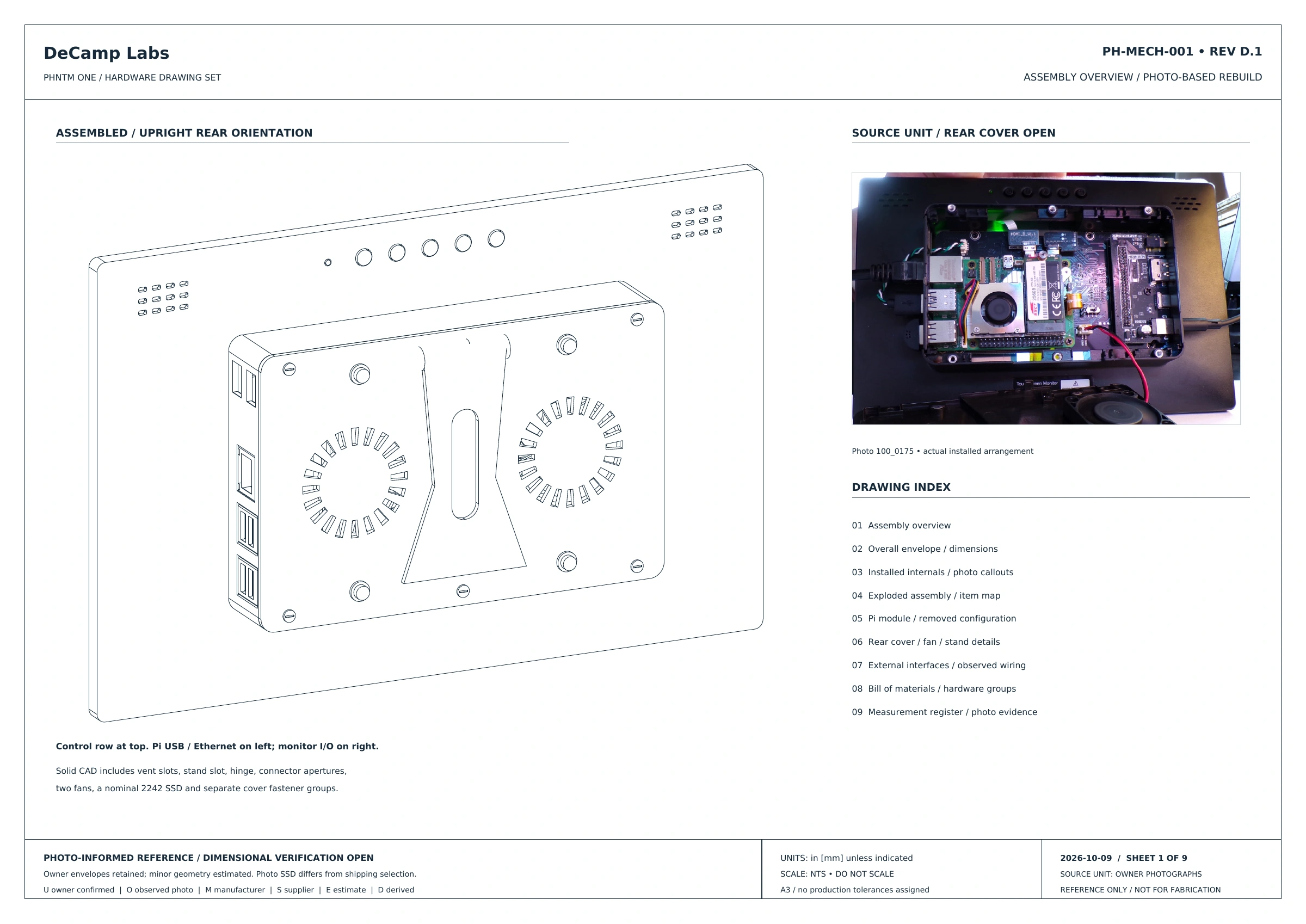

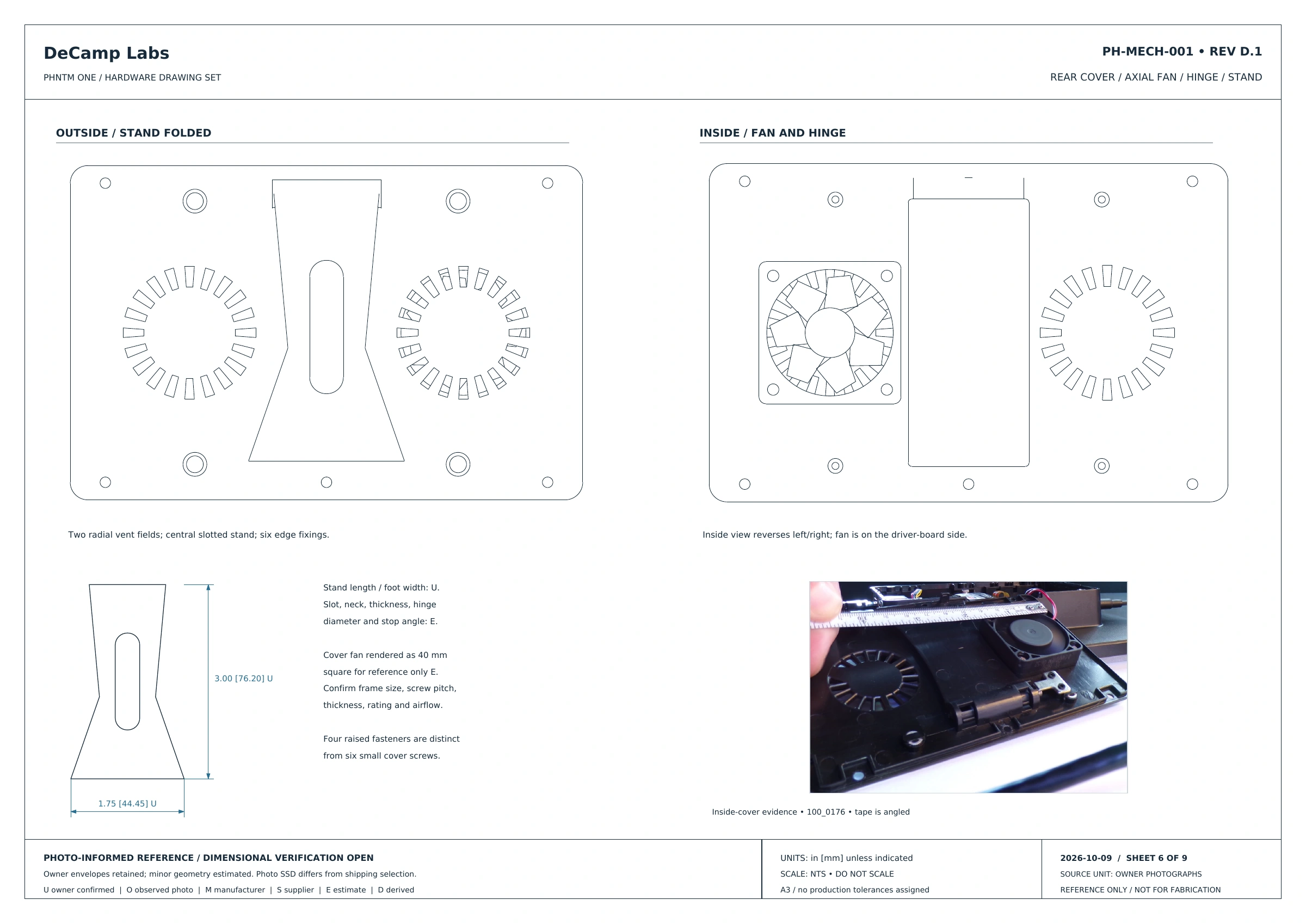

THE DRAWING SET

Outside. Inside. In detail.

Select a sheet to enlarge it. Every sheet is also included in the downloadable PDF.

Engineering drawing

Open full size ↗
